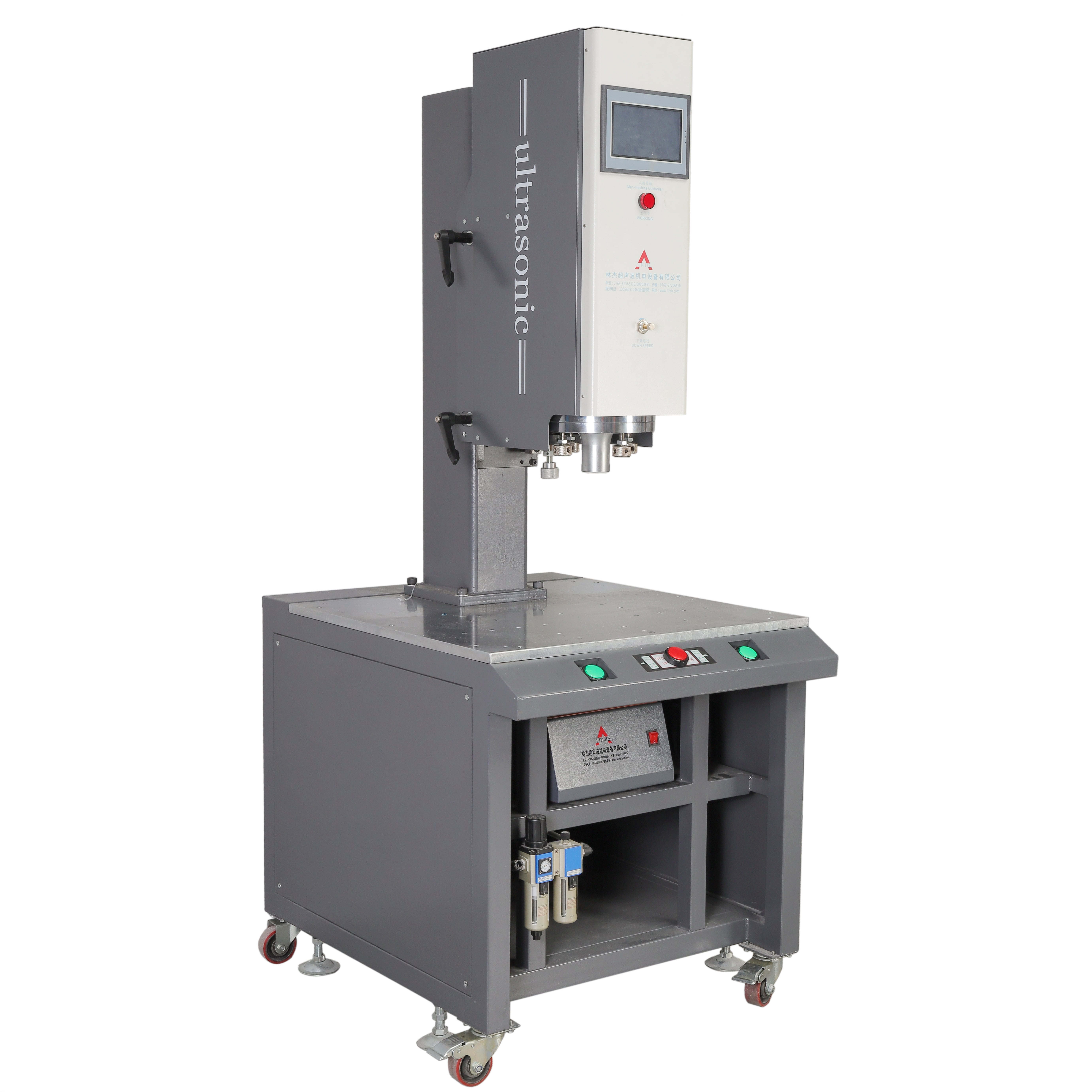

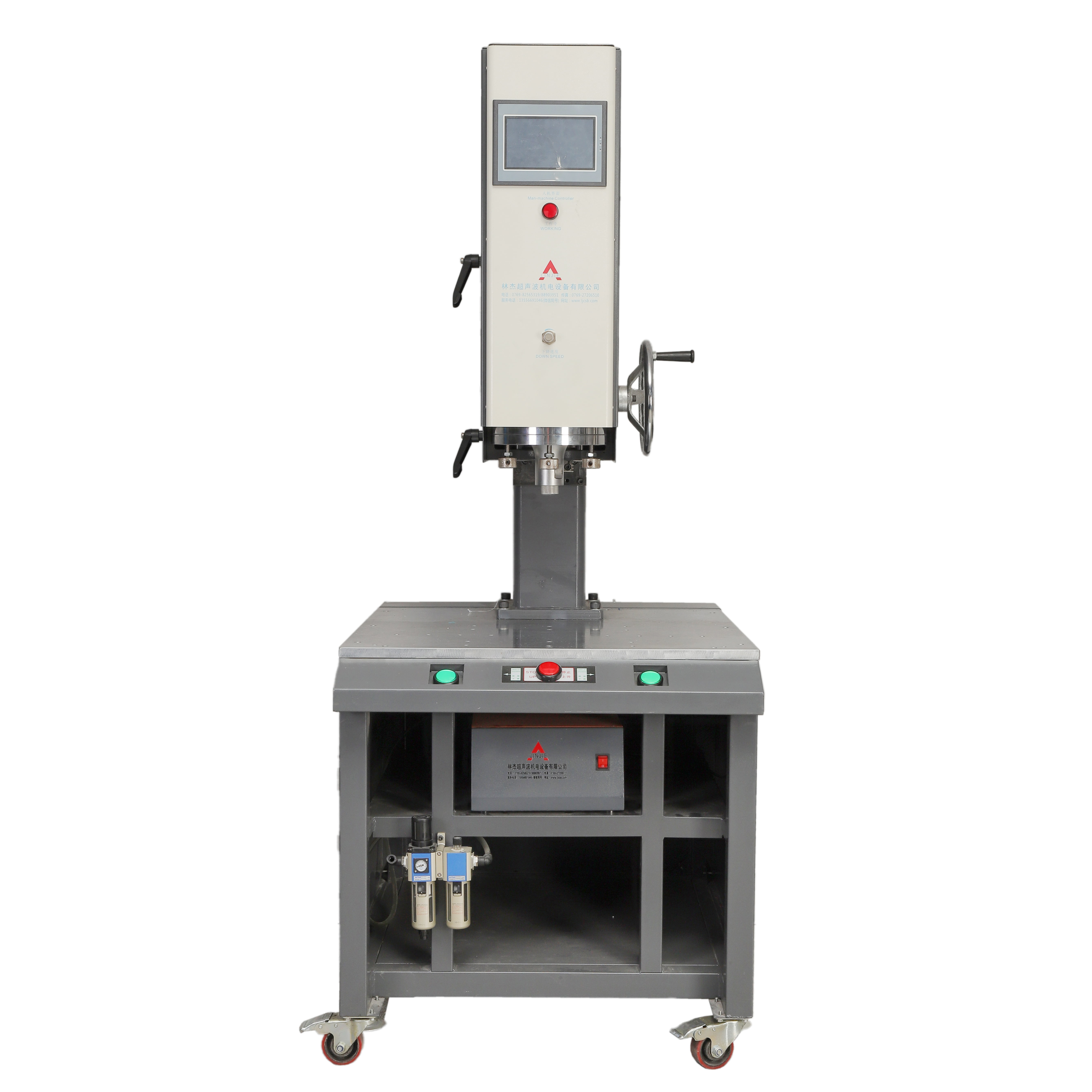

Ultrasonic welding equipment for rice cooker inner cover, food grade PP material seal


Ultrasonic welding equipment for rice cooker inner cover, food grade PP material seal

Place of Origin:Dongguan Guangdong

Brand Name:LINJIE

Certification:CE, ISO9001

Minimum Order Quantity:1 set

Packaging Details:Standard import and export wooden crates

Delivery Time:15 days

Payment Terms:50% T/T, 70% L/C

Applicable Industries: Hotels, GarmentShops, Building Material Shops etc.

Welding material:ABS PP PC PE etc.

Features of the entire machine:

1. The single-column high-strength lifting body is easy to operate and has high force-bearing strength.

2. Large work surface, stable mechanical properties, suitable for multi-purpose welding.

3. Linear ball guide rails, high precision and long service life.

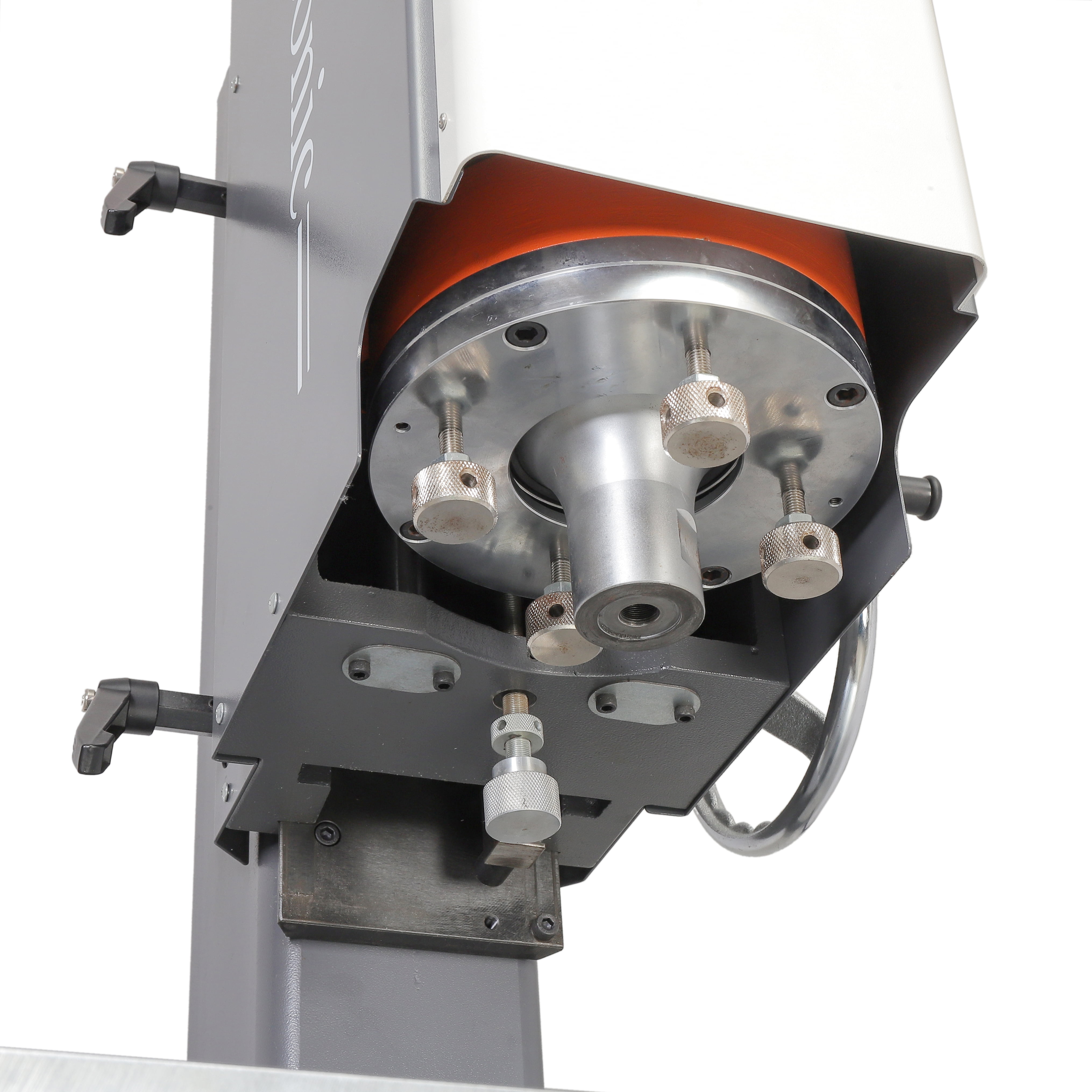

4. Imported horn, durable.

5. The power of the machine can be adjusted arbitrarily.

6. Taiwan original transformer ceramic converter, stable and durable.

7. Four-point horizontal leveling screws make mold adjustment quick and easy.

8. The surface is hot-dip varnished and corrosion-resistant.

Device configuration parameters

Model

LJ-H2020A

LJ-H2030A

LJ-H1526A

LJ-H1535A

LJ-H4500

Frequency

20KHz

15KHz

Input Voltage

AC SINGLE PHASE,220V 50/60Hz

MAX Power

2.2KW

3.2KW

2.8KW

3.8KW

5.0KW

Horn Journey

75MM

80MM

100MM

Lifting Control

Electric/Manual

Working Time

0.01-9.99S

Pressure

Pressure bound 1-7bar

Dimension

650*620*1840MM

750*750*2020MM

N.W

150KG

160KG

180KG

180KG

195KG
