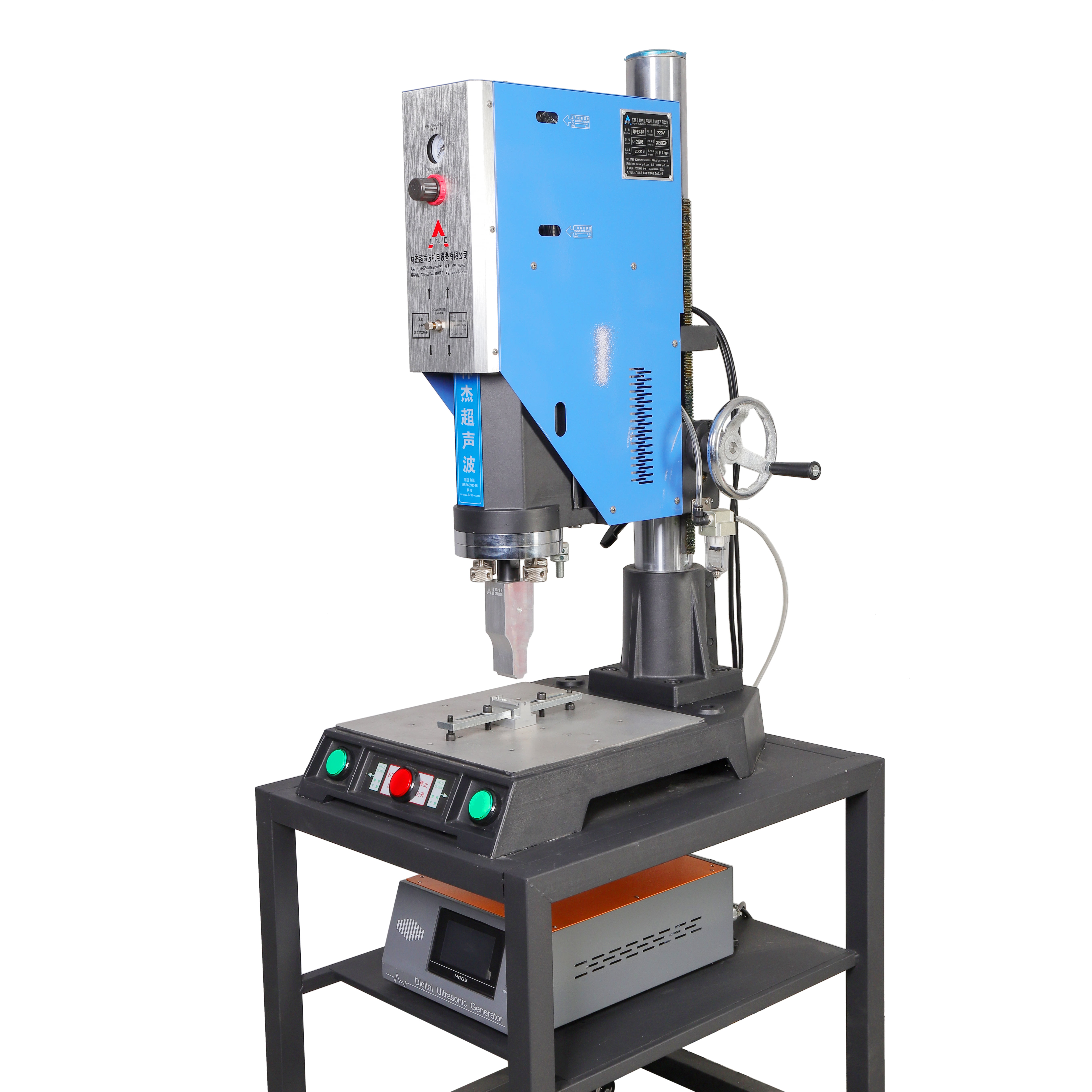

Lithium battery tab ultrasonic metal welding equipment, new energy battery pack assembly
Place of Origin:Dongguan Guangdong
Brand Name:LINJIE
Certification:CE, ISO9001
Minimum Order Quantity:1 set
Packaging Details:Standard import and export wooden crates
Delivery Time:15 days
Payment Terms:50% T/T, 70% L/C
Applicable Industries: Hotels, GarmentShops, Building Material Shops etc.
Welding material:ABS PP PC PE etc.

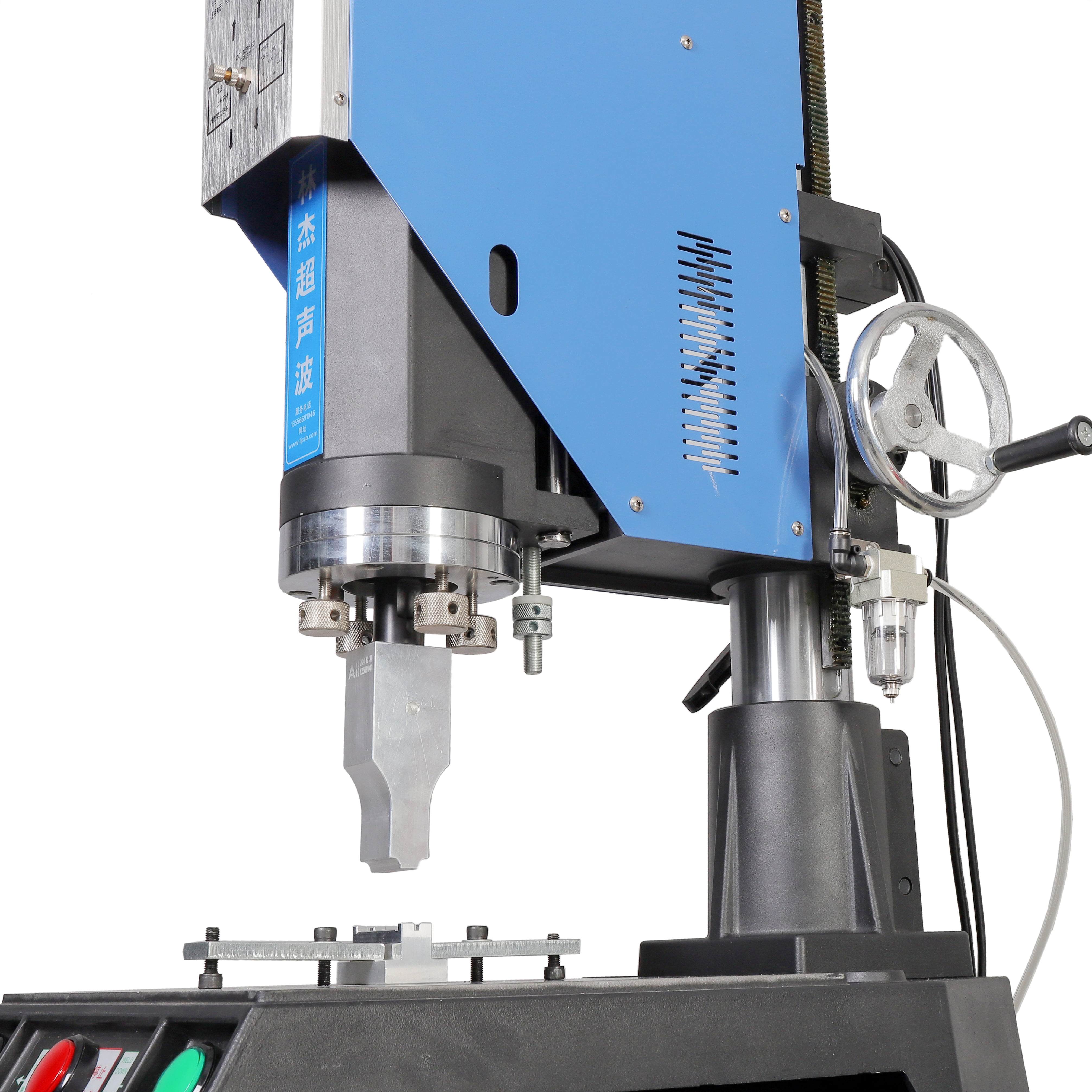

Features of the entire machine:
1. Manual precision limit fine adjustment, high precision.
2. The welding head center limit structure prevents welding deviation.
3. Linear ball guide rails ensure high-strength welding precision products.
4. The bottom plate is adjustable, making mold adjustment easily.
5. High-precision power trigger function, high welding stability.
6. Digital welding settings, intuitive and accurate.
7. Taiwan original transformer ceramic converter, stable and durable.
8. Titanium alloy transformer, low repair rate.
9. Frequency modulation and automatic frequency compensation circuit.
Device configuration parameters：
Model
LJ-2018B
LJ-2026B
LJ-1518B
LJ-1526B
LJ-1532B
Frequency
20KHz
20KHz
15KHz
15KHz
15KHz
Input Voltage
AC SINGLE PHASE,220V
MAX Input Power
1.8KW
2.6KW
1.95KW
2.65KW
3.35KW
Horn Journey
75/100MM
Output Time
Time control 0.01-9.99s
Pressure
Pressure bound 1-7bar
Welding Capability
Ø85
Ø105
Ø155
Ø175
Ø195
Compressor
1HP-2HP
Dimension
Size：700*410*1300MM/Generator Size:600*450*160MM
N.W
65KG
68KG
60KG
70KG
72KG
We are a company working for both manufacture and international selling of ultrasonic machines and equipment, in a particular, specialized in ultrasonic plastic welding machines.
Tags:Ultrasonic , Plastic welding , Hot plate ,Hot Melt , Vibration friction , High frequency , Mold and customization
Dongguan Linjie Ultrasonic Machinery & Electric Equipment Co., Ltd.
