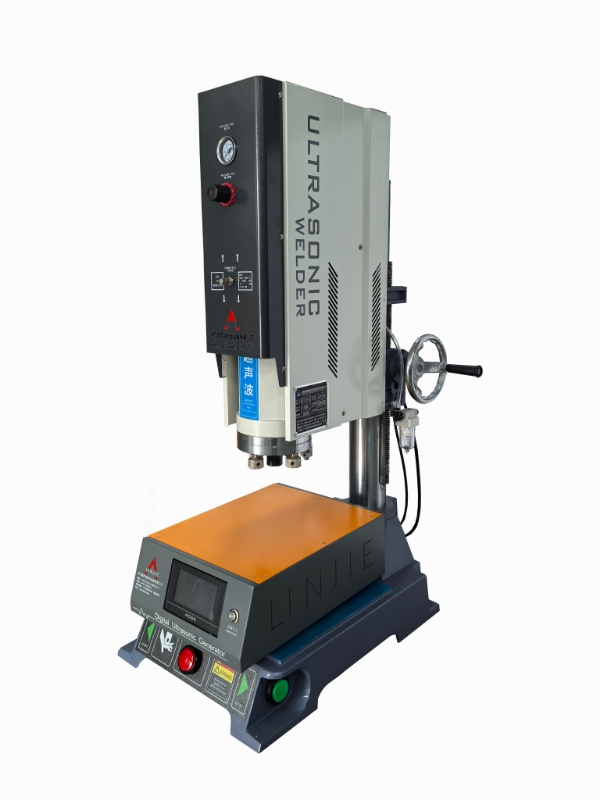

Ultrasonic welding equipment for automotive instrument panel components, high-precision hot melt bonding system
Place of Origin:Dongguan Guangdong
Brand Name:LINJIE
Certification:CE, ISO9001
Minimum Order Quantity:1 set
Packaging Details:Standard import and export wooden crates
Delivery Time:15 days
Payment Terms:50% T/T, 70% L/C
Applicable Industries: Hotels, GarmentShops, Building Material Shops etc.
Welding material:ABS PP PC PE etc.
Features of the entire machine:
1. Manual precision limit fine adjustment, high precision.
2. Manual precision limit fine adjustment, high accuracy, up to 0.02mm.
3. Linear ball guide rails, high precision and long service life.
4. The bottom plate is adjustable, making mold adjustment easily.
5. The digital machine interface can be switched between Chinese and English, which is intelligent and efficient.
6. The power of the machine can be adjusted arbitrarily.
7. Taiwan original transformer ceramic converter, stable and durable.
8. Titanium alloy transformer, low repair rate.
9. Frequency modulation and automatic frequency compensation circuit.
Device configuration parameters：
Model
LJ-2018C
LJ-2026C
LJ-2030C
LJ-1528C
LJ-1535C
Frequency
20KHz
20KHz
20KHz
15KHz
15KHz
Input Voltage
AC SINGLE PHASE,220V
MAX Input Power
1.8KW
2.6KW
3.0KW
2.8KW
3.5KW
Horn Journey
75/100MM
Oscillating System
Line
Output Mode
Time/Energy/External Control/Grounding
Pressure
Pressure bound 1-7bar
Welding Capability
Ø80
Ø100
Ø150
Ø170
Ø190
Compressor
1HP-2HP
Dimension
810*550*1300MM
N.W
60KG
60KG
62KG
65KG
68KG
We are a company working for both manufacture and international selling of ultrasonic machines and equipment, in a particular, specialized in ultrasonic plastic welding machines.
